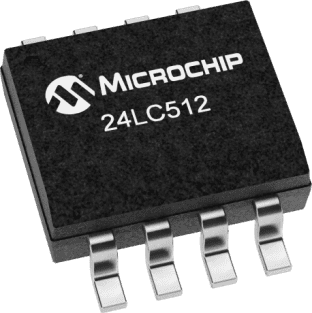

24LC512-I/SN

• Reliable EEPROM Memory
  • 64K x 8 (512 Kbit)
  • 128-Byte Page Write Buffer
  • Page Write Time 5 ms Max.
  • Hardware Write-Protect Pin
  • Factory Programming Available
• Low Power
  • Operating voltage 1.7V to 5.5V
  • Read current 400 uA, max.
  • Standby current 1 uA, max.
• 2-Wire Serial Interface, I2C™ Compatible
  • Cascadable up to Eight Devices
  • 100 kHz and 400 kHz Clock Compatible
• Pb-Free and RoHS Compliant
• Parameter Name

  Value
  Density

  512K bits (x8)
  Op. Volt Range (V)

  2.5 to 5.5
  Max. Clock Freq.

  400 kHz
  Page Size (bytes)

  128
  Write Protect

  Full Array
  Temp Range (°C)

  -40°C to +125°C
  Endurance

  1,000,000
  Data Retention (Years)

  200
