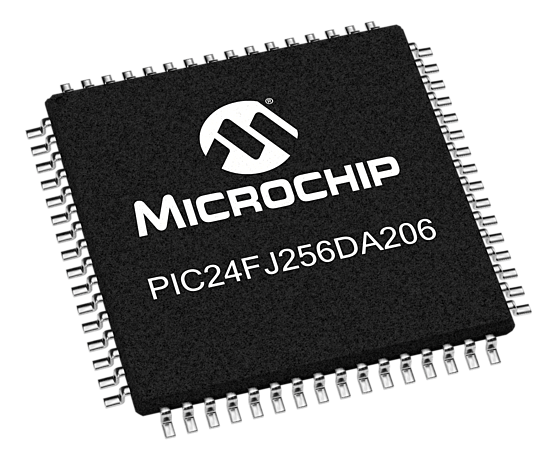

PIC24FJ256DA206 I/PT
Kategori
Marka
Stok Kodu
BCDKRVZ5
Fiyat
22,00 USD + KDV
*85,20 TL den başlayan taksitlerle!!
908,03 TL
PIC24FJ256DA206 I/PT
- Graphics Controller Features
- 3x Graphics Hardware Acceleration Units
- Color Look-up Table (CLUT) with Maximum of 256 Entries
- Direct Interface to Monochrome, C-STN, TFT, OLED
- Resolution up to 640x480 @30Hz, 16 bpp, or 480x272 @60Hz, 16 bpp
- Large integrated 96KB SRAM
- Universal Serial Bus Features
- USB v2.0 On-the-Go (OTG) compliant
- Dual role capable - can act as either Host or Device
- Low speed(1.5Mb/s) and full speed(12 Mb/s) operation in host mode
- Full speed USB operaton in Device mode
- Analog Features
- Up to 24x, Capacitive touch sensing
- Up to 24x, 10-Bit, ADC at 500 ksps
- 3x Analog Comparators with Programmable Input/Output Configuration
- Power Management
- On-Chip Voltage Regulator of 1.8V
- Switch between Clock Sources in Real Time
- Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
- Run Mode: 800 uA/MIPS, 3.3V Typical
- Sleep mode Current Down to 20 uA, 3.3V Typical
- Standby Current with 32 kHz Oscillator: 22 uA, 3.3V Typical
