Proteus Professional VSM for PIC16

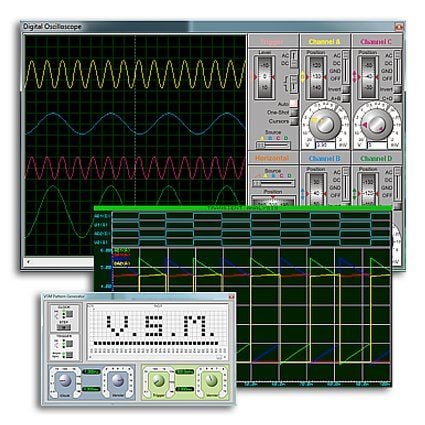

Proteus VSM for PIC16
Klasik SPICE devre simulasyonunu içeren Proteus sanal sistem modelleri (VSM), mikrodenetleyici ve mikroişlemcilerin, analog ve dijital devre elemanları ile birlikte simulasyonunu olanaklı kılmaktadır.
"Proteus VSM for PIC16” aşağıdaki Proteus modüllerini ve komponent modellerini içermektedir.
● ISIS şematik çizim
● ProSPICE simulasyon (analog ve temel dijital simulasyon)
● PIC16 ailesinin listede verilen çeşitleri.
● Gömülü çevre birimleri simulasyon model kütüphanesinin tüm elemanları (Embedded Peripherals).
● Otomatik derleyici yapılandırmalarını içeren VSM Studio IDE.
● 10,000’in üzerinde standart simulasyon modelleri.
Desteklenen PIC16 mikrodenetleyicileri
● PIC16C61, PIC16C62B, PIC16C63A, PIC16C64A
● PIC16C65B, PIC16C66, PIC16C67, PIC16C72A
● PIC16C73B, PIC16C74B, PIC16C76, PIC16C77
● PIC16F506, PIC16F526, PIC16F610, PIC16HV610
● PIC16F630, PIC16F631, PIC16F648A, PIC16F676
● PIC16F616, PIC16HV616, PIC16F627A, PIC16F628A
● PIC16F677, PIC16F684, PIC16F685, PIC16F687
● PIC16F688, PIC16F689, PIC16F690, PIC16F716
● PIC16F722A, PIC16F723A, PIC16F724, PIC16F726
● PIC16F727, PIC16LF722A, PIC16LF723A, PIC16LF724
● PIC16LF726, PIC16LF727, PIC16F785, PIC16HV785
● PIC16F818, PIC16F819, PIC16F83, PIC16F84A
● PIC16F87, PIC16F870, PIC16F871, PIC16F873
● PIC16F873A, PIC16F874, PIC16F874A, PIC16F876
● PIC16F876A, PIC16F877, PIC16F877A, PIC16F88
● PIC16F882, PIC16F883, PIC16F884, PIC16F886
● PIC16F887, PIC16F913, PIC16F914, PIC16F916
● PIC16F917, PIC16F946, PIC16F1454,PIC16F1455
● PIC16F505, PIC16F707, PIC16LF707, PIC16F1788
● PIC16LF1788, PIC16F1789, PIC16LF1789
● PIC16F1459, PIC16LF1454, PIC16LF1455, PIC16LF1459
● PIC16F1503, PIC16LF1503, PIC16F1507, PIC16LF1507
● PIC16F1508, PIC16LF1508, PIC16F1509, PIC16LF1509
● PIC16F1516, PIC16LF1516, PIC16F1517, PIC16LF1517
● PIC16F1518, PIC16LF1518, PIC16F1519, PIC16LF1519
● PIC16F1574, PIC16LF1574, PIC16F1575, PIC16LF1575
● PIC16F1578, PIC16LF1578, PIC16F1579, PIC16LF1579
● PIC16F1703, PIC16F1704, PIC16F1705, PIC16LF1703
● PIC16LF1704, PIC16LF1705, PIC16F1707, PIC16F1708
● PIC16F1709, PIC16F1823, PIC16F1824, PIC16F1825
● PIC16F1826, PIC16LF1707, PIC16LF1708, PIC16LF1709
● PIC16F1784, PIC16F1786, PIC16F1787, PIC16LF1784
● PIC16LF1786, PIC16F1829, PIC16LF1823, PIC16LF1824
● PIC16LF1787, PIC16LF1825, PIC16LF1826, PIC16F1827
● PIC16F1828, PIC16LF1827, PIC16LF1828, PIC16LF1829
● PIC16F1933, PIC16F1938, PIC16F1934, PIC16F1936
● PIC16F1937, PIC16F1939, PIC16LF1933, PIC16LF1934
● PIC16LF1936, PIC16LF1937, PIC16LF1938, PIC16LF1939
● PIC16F1946, PIC16F1947, PIC16LF1946, PIC16LF1947
