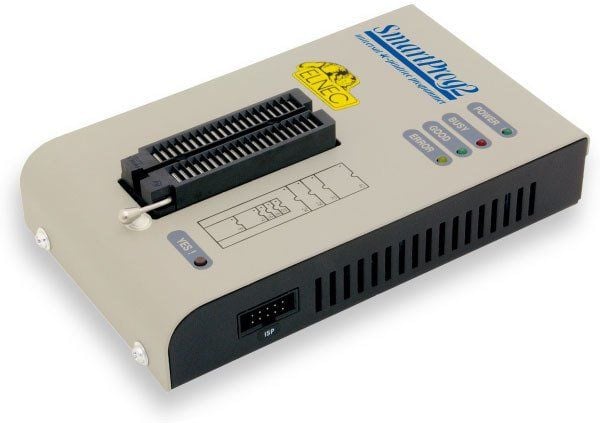

SmartProg2

Programmer, in ZIF socket

• EPROM: NMOS/CMOS, 27xxx and 27Cxxx series, with 8/16 bit data width, full support of LV series (*1*2)
• EEPROM: NMOS/CMOS, 28xxx, 28Cxxx, 27EExxx series, with 8/16 bit data width, full support of LV series (*1*2)
• Flash EPROM: 28Fxxx, 29Cxxx, 29Fxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series, with 8/16 bit data width, full support of LV series (*1*2)
• Serial E(E)PROM: 24Cxxx, 24Fxxx, 25Cxxx, 59Cxxx, 25Fxxx, 25Pxxx, 85xxx, 93Cxxx series, AT88SCxxx, full support for LV series (*1)
• Serial Flash: standard SPI (25Bxxx, 25Dxxx, 25Exxx, 25Fxxx, 25Lxxx, 25Mxxx, 25Pxxx, 25Qxxx, 25Sxxx, 25Txxx, 25Uxxx, 25Vxxx, 25Xxxx, 26Vxxx), DataFlash (AT26Dxxx)
• Configuration (EE)PROM: XCFxxx, 37LVxx, XC17xxxx, EPCxxx, AT17xxx, LV series including
• NV RAM: Dallas DSxxx, SGS/Inmos MKxxx, SIMTEK STKxxx, XICOR 2xxx, ZMD U63x series
• PLD: series: Atmel, AMD-Vantis, Cypress, ICT, Lattice, NS, ... (*1)
• Microcontrollers 51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89LVxxx, 89LSxxx, 89LPxxx, LPC series from Atmel, Atmel W&M, Intel, Philips, SST, Winbond (*1*2)
• Microcontrollers Atmel AVR: rady AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega, (*1*2)
• Microcontrollers Cypress: CY8Cxxxxx
• Microcontrollers ELAN: EM78Pxxx
• Microcontrollers EM Microelectronic: 4 and 8 bit series
• microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, dsPIC series, 8-40 pins (*1*2)
• Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx, dsPIC series, 8-40 pins (*1*2)
• microcontrollers Scenix (Ubicom): SXxxx series
• Microcontrollers Silicon Laboratories(Cygnal): C8051 series
• Microcontrollers other: ASP, Macronix, Princeton, EXODUS Microelectronic, Goal, Ramtron, Topro, VersaChips, Winbond

 Programmer, through ISP connector

• Serial E(E)PROM: IIC series, MW series, SPI series, KEELOQ series, serial data Flash
• Microcontrollers Atmel AVR: AT89Sxxx, AT90Sxxxx, AT90pwm, AT90can, AT90usb, ATtiny, ATmega, AT89LSxxx, AT89LPxxx
• Microcontrollers Cypress: CY8C2xxxx
• Microcontrollers Elan: EM78Pxxx
• Microcontrollers EM Microelectronic: 4 and 8 bit series
• Microcontrollers Microchip PICmicro: PIC10xxx, PIC12xxx, PIC16xxx, PIC17Cxxx, PIC18xxx, PIC24xxx, dsPIC series, 8-40 pins (*1*2)
• Microcontrollers Philips: LPC series
• Microcontrollers Silicon Laboratories(Cygnal): C8051 series

Notes:

• (*1) - suitable adapters are available for non-DIL packages
• (*2) - there exist only a few adapters for devices with more than 40 pins. Therefore, please, consider a more powerful programmer (BeeProg2C/BeeProg2), if you need to program devices with more than 40 pins
• see actual DEVICE LIST and verify, if device you need to be supported are listed here
• if you plan to use very new and/or very complicated chips, SmartProg2 hardware might be not sufficient for it, therefore consider please usage of more powerful programmer (i.e. BeeProg2C / BeeProg2)





Entegre Testi

• Statik RAM: 116 .. 624000

Kılıf tipleri

• Mevcut ZIF sokette, 40 bacağa kadar DIP kılıflı her entegre devre.
• DIP, SDIP, PLCC, JLCC, SOIC, SOP, PSOP, SSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, FBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP, LQFP, MQFP, HVQFN, QLP, QIP vb. tüm kılıf tiplerini gerektiğinde programlama soket adaptörleri yardımıyla desteklemektedir.
• 40 bacağa kadar DIP olmayan entegreleri universal programlama adaptörleri(*) aracılığıyla destekler.


(*) Elnec PG4UW programında, ilgili entegre için belirtilen, kendi üretimi olan programlama adaptörü modeli kullanılmadığında sorumluluk kabul etmemektedir.
